On-Ground Adjustable Propellers – Finding the Optimal Propulsion Setup Before Series Production

Developing a UAV platform is a process of balancing weight, power, and aerodynamics. While most parameters can be calculated during the design phase, one critical variable often remains an estimate until the first flight: the real aerodynamic drag of the airframe.

Without an exact understanding of how much resistance the platform creates at mission speeds, selecting a standard fixed-pitch propeller is a difficult task with uncertain results.

The Real Cost of Uncertainty in UAV Development

Working with estimates for airframe drag can lead to unexpected complications during the prototyping phase. If a propeller isn't a perfect match for the drone's requirements, it affects the entire system. A pitch that is set too high can lead to motor overheating, while a pitch that is too low causes the motor to over-rev, which quickly drains the battery or wastes fuel.

The main issue with this uncertainty is the impact on the development timeline. When a drone doesn't perform as expected during a test flight, the process often comes to a halt while the team looks for a different propeller.

At Mejzlik Propellers, we focus on providing solutions based on facts. However, without knowing the required thrust precisely, any recommendation for a fixed-pitch propeller remains a theoretical calculation. This creates a need for an empirical way to verify performance before committing to a final design.

On-Ground Adjustable Propellers for Accurate System Testing

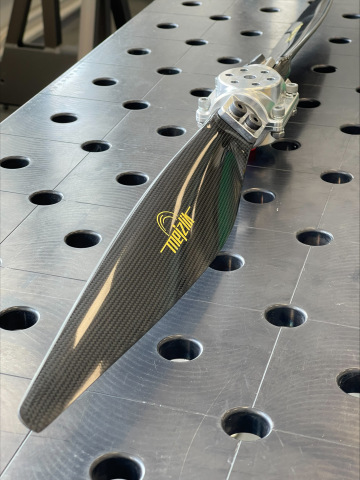

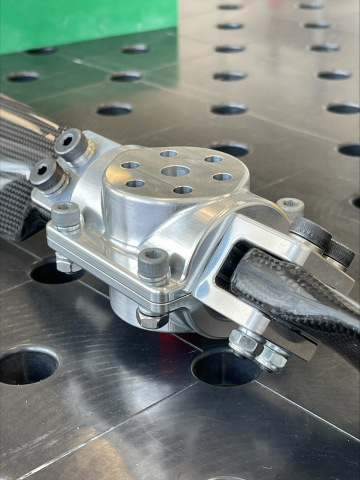

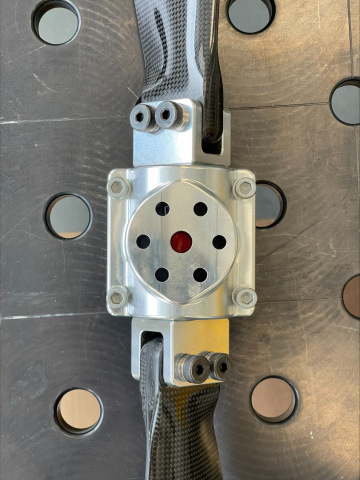

To address this, we provide the On-Ground Adjustable (OGA) propeller system. It is a key tool for the development and prototyping phase. The OGA system features a specialized high-grade aluminum hub that lets you manually adjust the blade angle yourself while the aircraft is on the ground and the engine is off.

This allows you to make adjustments directly at the airfield. With a single OGA set, you can start with a conservative pitch to protect the motor and then gradually increase it between test flights. This controlled approach lets you find the maximum performance of the propulsion system without risking damage from overheating.

While the metal hub makes the testing propeller heavier than a final version, this weight difference doesn't really change the results of the test. The structural stiffness of the aluminum hub ensures that the blades remain in their precise position even under high loads. The blades themselves are identical in shape to our final fixed-pitch propellers, so the performance you see during testing will be exactly what you get in series production.

We made sure the system is safe for high-power testing. The blades passed overspin testing to make sure they hold together at high speeds, and the hubs went through centrifugal load testing. This gives you the confidence to run your flight tests at full power and find the true limits of your platform.

Using Flight Data to Define Optimal Propulsion

Using an adjustable propeller between flights takes the guesswork out of the setup. You can observe how each small change in the blade angle affects the aircraft's behavior and efficiency in real flight conditions. This data-driven approach typically follows these steps:

• Initial setup. Starting with a conservative pitch to ensure the motor operates within safe thermal limits.

• Incremental adjustments. Changing the blade angle in small steps between test flights to monitor changes in climb rate and cruise efficiency.

• Performance mapping. Identifying the exact point where any further change to the angle—up or down—results in a decrease in performance.

• Data analysis. Using the final "sweet spot" setting to accurately calculate the actual aerodynamic drag of the platform.

Once you have identified the ideal setting, you have a clear path to finalize your propulsion requirements based on how the drone actually moves through the air, rather than relying on theoretical estimates.

The Strategic Transition from Testing to Series Production

Once the ideal configuration is confirmed, the move to series production is easy. You no longer need the adjustable aluminum hub for the final product. We take the proven blade design and move it into a simplified fixed-pitch version.

The design of the blade stays exactly the same as the one you tested. This consistency is vital; when we remove the adjustable hub to create the final version, the aerodynamic behavior stays identical. You get all the weight-saving benefits of a dedicated series propeller without having to re-verify any of the flight data you already collected. The final carbon fiber fixed-pitch propeller is lighter, tougher, and better for series manufacturing, as it is balanced and optimized for a single, specific operating point.

Building Your UAV Project on Verified Data

In the professional UAV industry, relying on estimates is a risk you don't have to take. The On-Ground Adjustable system gives you the data needed to connect your initial design with a finished, reliable product.

By using OGA testing during development, you can define exactly what your platform needs and start series production with confidence. At Mejzlik Propellers, we give you the tools and expertise to make sure your propulsion system perfectly matches how your aircraft actually performs in the air.
